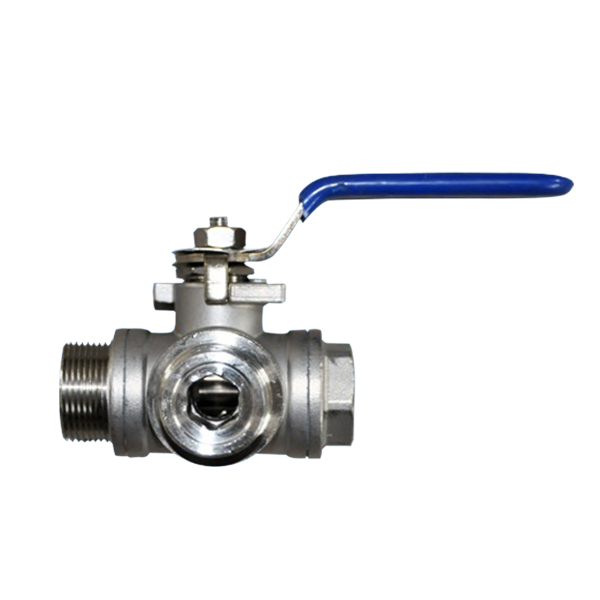

不銹鋼三通球閥適用于船舶空氣、二氧化碳滅火、海水及液壓油管路。
Stainless steel three-way valve used for shipping pipes of air.Co2 fire，sea-water and hydraulic oil．
結構及基本尺寸 Structure and basic dimensions
公稱壓力 Nominal pressure PN(Mpa) | 公稱通徑 Nominal diameter DN | 結構尺寸 Physical dimensions | 螺紋接頭尺寸 Dimensions of sarewed connection | ||||||
L0 | L | L1 | L2 | H | D | D1 | L3 | ||
10 | 10 | 110 | 85 | 41 | 36 | 58 | M27×1.5 | 20 | 13 |
15 | 110 | 90 | 43 | 40 | 60.5 | M30×1.5 | 24 | 14 | |
20 | 110 | 107 | 50 | 46 | 67.5 | M36×1.5 | 30 | 16 | |
